本次活动的第一位裁判:
AURENDER N10 Music Server (59,800元)

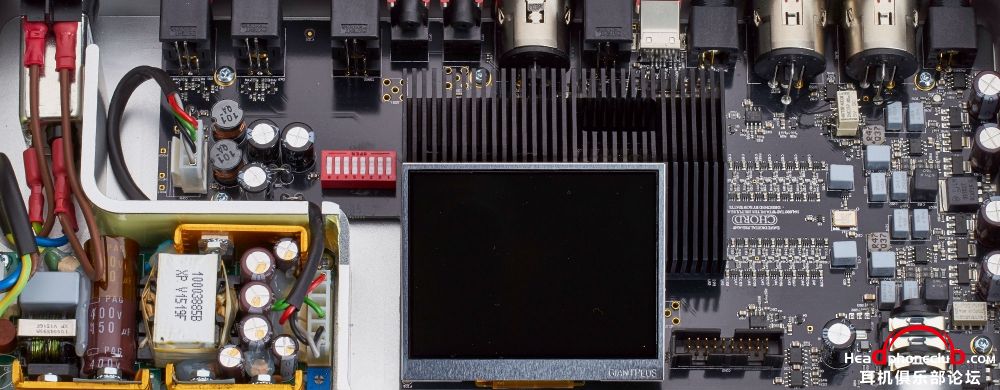

技术特点:内置240G固态硬盘(缓存)+4TB机械硬盘(存储),双线性电源独立供电,数字锁相电路、FPGA与OCXO时钟组成的数字电路降低抖动,基于FPGA的DSD-PCM算法和全面的I/O接口,提供了基于iPad的遥控APP Aurender Conductor
参数:
Compatible Formats DSD(DSF, DFF), WAV, FLAC, AIFF, ALAC, M4A, APE and others
Bit and Sample Rates SPDIF : Up to 24-bit, 192kHz (PCM); 1-bit, 2.8MHz (DSD64)
USB : 32bit /384kHz, 1-bit, 2.8MHz (DSD64); 1-bit, 5.6MHz (DSD128)
User Software Aurender Conductor iPad App, Android App (Lite Version)
Solid-State Drive 1 x 240 GB
Hard Disk Drives 4TB (2 x 2TB)
SPDIF Clocking FPGA-based All Digital Phase Locked Loop
Audio Clock OCXO
Digital Audio Outputs 1 coaxial, 1 optical, 1 AES/EBU, 1 BNC, 1 USB Audio Class 2.0
Digital I/O 1 Gigabit LAN, 2 x USB 2.0
CPU Board Proprietary Aurender Board
Main Memory 4GB
Finish Silver or Black
Dimensions 430mm x 83mm x 353mm
16.93in x 3.27in x 13.9in
Weight 12.26kg
27.03 lb
Power Consumption Play(27W), Peak(37W), Standby(3.1W)
|
|
