ada 8xr 火线 电脑端怎样设置192K输出

darkblood

交易区新帖推荐

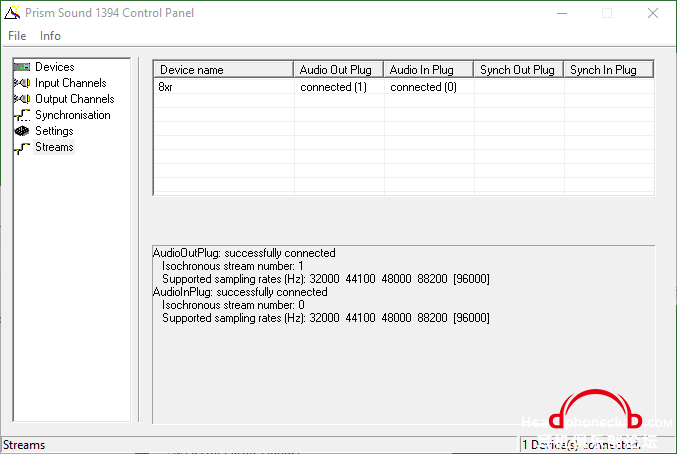

最高只有96K

天方夜谭天说地

ada8解码 非xr版？

darkblood

天方夜谭天说地 发表于 2023-2-19 15:33
ada8解码 非xr版？

答非所问

darkblood

7.2 Extended sample rates and Split96 interfacing ........................................................ 26
7.2.1 What are ‘extended’ sample rates? ................................................................... 26
7.2.2 What is the use of extended sample rates? ...................................................... 27
7.2.3 Interfacing extended sample rates..................................................................... 27
7.2.4 Extended sample rates in the ADA-8XR.....................


这说明书这么多字 漫无边际大道理  就是没有简单一句话
8xr火线到模拟输出192Khz到底是不是无条件的单线aes输出   还是需要特殊条件

amex

4i4o模式就是192的
说明书说的很明白

darkblood

amex 发表于 2023-2-19 23:13
4i4o模式就是192的
说明书说的很明白

选4o4i 192出来了 但是没有声音 怎么办

darkblood

If you have an ADA-8 XR that is fitted with two FireWire I/O Modules, an Analogue Line Input
Module, and an Analogue Line Output module the “FWire AD/DA Casc” store will appear in
the store banks when the Factory Stores are recalled. Use this store for common A/D and D/A
applications with sample rates up to and including 192kHz.


就为了192要多买一张火线卡  日仙人  这叫支持192  192要多花钱 不早说

amex

darkblood 发表于 2023-2-20 11:58
If you have an ADA-8 XR that is fitted with two FireWire I/O Modules, an Analogue Line Input
Module ...

？？？

大哥你理解能力是不是有点捉鸡

darkblood

amex 发表于 2023-2-20 13:22
？？？

大哥你理解能力是不是有点捉鸡

简单一点 你现在用手机录像操作流程传到b站上去  我看录像操作一遍就行了  火线 单线单卡 输出模拟192Khz

darkblood

Each FireWire card caters for 8 simultaneous input and output channels at up to 96kHz sampling rate, or for 4 simultaneous input and outputs channels at 176.4 and 192kHz sampling rates. 8 channel simultaneous input and output applications at sampling rates over 96kHz require two FireWire cards. 16 channel input or 16 channel output applications are also supported at up to 96kHz with two FireWire cards.

谁不识字?官网介绍

http://www.prismsound.com/music_ ... s/ada8_firewire.php

sampling rates over 96kHz require two FireWire cards

sampling rates over 96kHz require two FireWire cards

sampling rates over 96kHz require two FireWire cards

4通道我调出来了  选96就有声音  选192可以播放 就是没有声音  到底什么情况

amex

for 4 simultaneous input and outputs channels at 176.4 and 192kHz sampling rates
8 channel simultaneous input and output applications at sampling rates over 96kHz require two FireWire cards.
大哥可能识字，但真的理解能力有点问题

amex

白纸黑字写的明明白白4i4o就能跑192……人家说8通道192才要两张卡
我们8xr用户用了多少年192了到你这得两张卡……
还是说你非得跑8通道192？

darkblood

amex 发表于 2023-2-20 16:25
for 4 simultaneous input and outputs channels at 176.4 and 192kHz sampling rates
8 channel simulta ...

选192没声音  92有声音  为什么  选的是line1

darkblood

amex 发表于 2023-2-20 16:27
白纸黑字写的明明白白4i4o就能跑192……人家说8通道192才要两张卡
我们8xr用户用了多少年192了到你这得两 ...

已经跑了 就是没声音为什么

amex

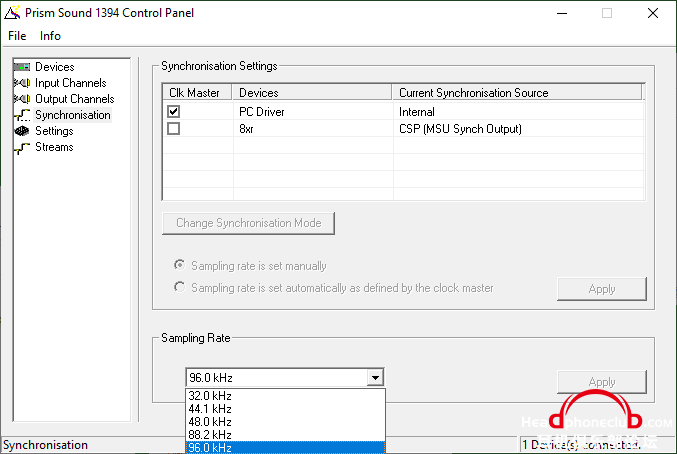

不要选pc driver
选8xr，然后csp那个改成local
下面sampling rate is set manully（对，手动才会自动）
然后设置有个wrst啥的得开开还是关掉忘了
当然就用csp也能正常出声不过声音比local虚一点
