Linnenberg u:c:a (今年夏季开始发售)


(原型机)

Preliminary specifications:
USB-input:
Input tranceiver working in jitter free asynchronous mode
Completely isolated to the USB-bus, no power is used from the host computer
32–192kHz sample frequency range, up to 32 bit

S/PDIF input:
True 75 Ohms input, transformer coupled (galvanic isolation)
Digital quartz PLL synthesizer receiver with very low intrinsic jitter (< 50ps)
32 – 192kHz sample frequency range, 24 bit

DAC:
Upsampling to 192kHz, regardless of input rate
Master clock oscillator with 3ps periodic jitter
Passive I/U conversation with 0.1% precision resistors, zero feedback

Headphones amplifier:
Full discrete construction. NO OPAMPS. NO CHIPS
Volume control with selected blue Alps attenuator
6.35mm phone jack output
1000mW continuous sine power output
1 Ohm output impedance
Suitable for 32 – 600 Ohms cans

Preamplifier:
Cinch output connectors for use as top quality preamp

Power Supply:
Linear regulated supply using a 15VA toroid transformer
Highest quality voltage regulators

Handmade in Germany:
Because we are not just assembling what was built elsewhere, we can easily monitor the quality of supplied parts and take instant measures if something is not consistent with our requirements Actually 45% of our parts and raw materials originate from the country

    Retail price: 1190.00 Euro

[ 本帖最后由 palchiu 于 2012-6-18 10:18 编辑 ]

Onedayedison

貌似在乐理官网见过，1w港币

headfan

造型我喜欢

palchiu

原帖由 Onedayedison 于 2012-5-24 18:32 发表
貌似在乐理官网见过，1w港币

乐理上的为现正销售为平衡版本分体机, 这u:c:a则为带耳放/前级的一体机.

貌似只有单端, 但多了同轴输入.

Onedayedison

原帖由 palchiu 于 2012-5-24 19:08 发表 乐理上的为现正销售为平衡版本分体机, 这u:c:a则为带耳放/前级的一体机.貌似只有单端, 但多了同轴输入.

哦哦，

tom3050

我是來頂pal兄的頭像

palchiu

太大也是個麻煩...

rickyang72

样子不错。

luoxing

原帖由 palchiu 于 2012-5-24 19:08 发表


乐理上的为现正销售为平衡版本分体机, 这u:c:a则为带耳放/前级的一体机.

貌似只有单端, 但多了同轴输入.

分体？看不出来

tom3050

原帖由 palchiu 于 2012-5-24 19:46 发表 太大也是個麻煩...

這個大的有點離譜。。。

arnarn

其实是挺大的

hjpwh

那些管别人叫大大的 不会就是指这两个西瓜吧

palchiu

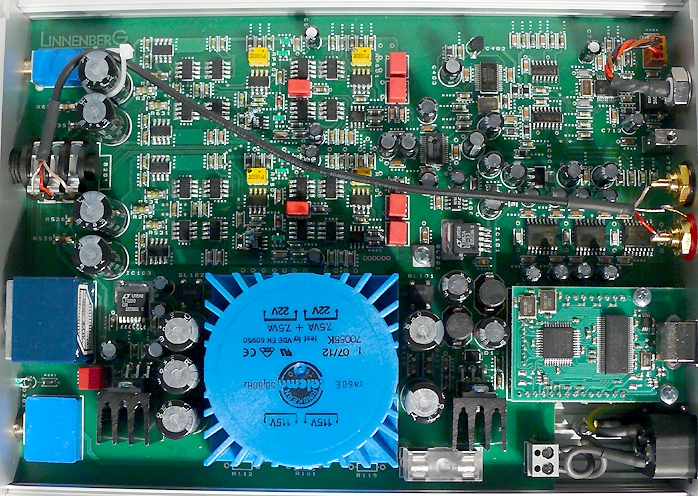

内部照



六个月亮的介绍  http://www.6moons.com/audioreviews/linnenberg2/1.html

palchiu

DAC是PCM1974, USB用M2tech OEM的板子.

接收WM8804, BB4192升频.

那堆八只脚的小蜘蛛是贴片晶体管不是OP

zhengnick

我觉得太得也是麻烦结合头像很好
