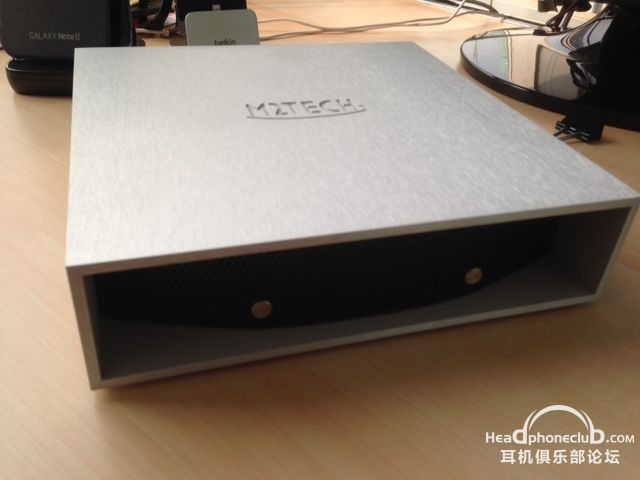

M2tech Young全新，5700元全国包邮，求秒

supersz

交易区新帖推荐

急出，全新，求秒！请使用下面链接

http://2.taobao.com/item.htm?id= ... .0.0.5LsRH9&mt=

http://img.taobaocdn.com/imgextr ... Xc7XtgW_728x728.jpg


Young

384/32 D/A converter

DETAILS

High-speed asynchronous USB connection Oversampling filters with minimum pre-echo and phase linearity S/PDIF, AES/EBU, Toslink digital inputs Line level single-ended on RCA output connectors Encased in a stylish aluminium case.

FEATURES

Young is a high performance, very high value-for-money D/A converter capable of handling up to 384kHz sampling rate and 32 bits resolution (USB input). It features a high speed asynchronous USB input based on the hiFace technology, further developped to allow for higher sampling rates. A comprehensive input set (S/PDIF on RCA and BNC, AES/EBU on XLR and optical on Toslink) provide great connection versatility. Despite its price, Young encopasses a leading edge technology for data handling and processing. A high performance oversampling filter, custom-made on a programmable logic device (FPGA) implements minimum-phase filters optimized for sound quality which allow for a very low noise floor. A 32 bits -D/A integrated circuit is used in a non-conventional mode to allow for 768kHz internal operation. The synergy between the DAC IC and the custoim oversampler allows for exceptionally low noise floor and THD. The output buffer uses a special operational amplifier with very low noise and THD thanks to its class-A biased output stage. The small size and stylish look of the Young allow for a uninvasive placement in every living space.


SPECIFICATIONS


Size: 200(w) x 50(h) x 200(d) mm
Weight: 1Kg approx.
Sampling Frequencies(kHz):
44.1, 48, 88.2, 96, 176.4*, 192*, 352.8**, 384**
Resolution: 16 up to 24 bit (S/PDIF, AES/EBU, optical), 16 to 32 bit (USB)
Frequency response: 10-20kHz +0.1/-0.5dB (fs = 44.1kHz)
10-90kHz +0.1/-0.1dB (fs=384kHz)
SNR: 121dB (A weighted, 192kHz, 24 bits, 20kHz bandwidth)
THD+N: 0.0003% (192kHz, 24 bits)
Inputs: 2 x S/PDIF (RCA and 75 Ohms BNC)
1x AES/EBU (XLR)
1x optical (Toslink)
1x USB (USB female Type B)
Output: single ended on RCA female
Output voltage: 2,65Vrms (7.5Vpp @ 0dBFS)
Supply voltage: 15V-18VDC
Supply current: 240mA@15V

*: not on Toslink
**: only USB

supersz

{:soso_e101:}{:soso_e101:}

supersz

{:3_58:}{:3_58:}

supersz

{:3_78:}

supersz

{:3_58:}{:3_70:}

supersz

{:3_88:}{:3_78:}{:3_82:}

战列舰

全新才750刀
http://www.musicdirect.com/p-60920-m2tech-young-dac.aspx

supersz

战列舰 发表于 2014-1-21 11:59
全新才750刀
http://www.musicdirect.com/p-60920-m2tech-young-dac.aspx

???
