jplay推出发烧usb扩展卡

liquidx

交易区新帖推荐

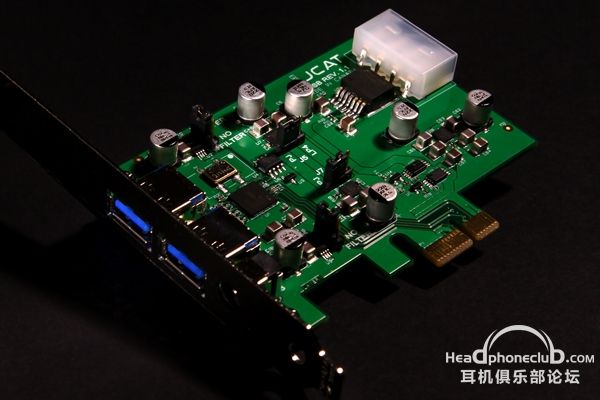

JCAT USB card created together with Adnaco Technology, the company with expertise in design of low noise high dynamic range (120dB+) data acquisition systems for sonar and radar applications, was made specifically for low noise high performance audio applications like hi-end audio playback.

Specification:

- ultra low noise design for noise sensitive audio applications
- ultra low noise linear regulators and high quality filters
- high precision ultra low phase noise oscillator
- uDP720201 NEC controller
- two USB 3.0 connectors supporting Low Speed (1.5 Mbps), Full-Speed (12 Mbps), Hi-Speed (480 Mbps) and Super-Speed (5 Gbps) data rates
- 5V for USB devices can be supplied from a PC’s power supply via an HDD LP4 connector or from an external power supply via a power jack connector
- for noise sensitive applications the 5V USB power can be filtered by two onboard high performance filters with PSRR better than 90dB at 10kHz
- in case external PSU is of very high quality, it is possible to bypass the filters and pass 5V USB voltage from the external PSU directly to the USB connector
- for self-powered USB devices a 5V power is not required for the card operation
-----------------------------
就是sotm差不多的hifi扩展卡啦，虽然sotm做的骚，但是毕竟是新出的东西，sotm好像只有usb 2.0的产品。不过jplay这个卡不便宜，jplay老用户预订价都要折合2400人民币，这个有点hi。。。。。。

DC999

这做工2400，抢钱吧！

kissnext

hifi处处都是坑

jjjkkkjjjkkk

淘宝有一款带屏蔽盒的，一样芯片，貌似振晶也差不多才60RMB。这个真坑

968pst

{:3_90:}
有必要吗，USB先天不足？

hmafiall

主板上USB确实先天有不足，上了扩展卡之后，ASIO延迟开到4ms，HQplayer缓冲开到5ms，随便怎么折腾，一点毛病都挑不出。

dcbyan

还在低延迟论，…………

可笑啊！

darkfrank

jplay想钱想疯了

fxqyq

请问，在哪买得到

chunshuo

这价格太坑爹了

968pst

dcbyan 发表于 2014-1-17 20:56
还在低延迟论，…………

可笑啊！

延迟问题无论在理论上还是实践上确实对声音有影响的
延迟短，实时性高，声音听上去干净细致

chinabee

968pst 发表于 2014-1-18 10:50
延迟问题无论在理论上还是实践上确实对声音有影响的
延迟短，实时性高，声音听上去干净细致

我感觉缓冲设大比较宽厚耐听...

968pst

chinabee 发表于 2014-1-18 11:01
我感觉缓冲设大比较宽厚耐听...

软件上是的，和我用jplay时一样
如果是界面驱动buffer的话，尽量低延迟，延迟高声音就一团团堆积。。。
